Gearbox Repairs

Gearbox Servicing and Common Repairs

Based in Bradford, BAWCo provides gearbox repair and servicing for industrial equipment.

We assess each gearbox individually before any work starts, and every repair includes preventive maintenance, so your gearbox keeps performing long after it leaves us.

100+ Years Experience
in Industrial Repairs
Contact Us

Recommendations

We recommend servicing based on gearbox quality, application, operating time and capacity

Recommended service times based on operating capacity:
100% 1-2 Years
75% 2-3 Years
50% 3-5 Years

Gearbox Servicing

  • Draining oil and inspecting all gears
  • Cleaning the internal components and external casing
  • Checking input and output shaft surfaces for wear
  • Replacing oil seals
  • Refilling with the correct specification oil
Industrial Gearbox Repair by BAWCo
Gearbox Servicing
Gearbox Servicing assembled after repair

Possible Problems

  • Oil leaking from the shaft
  • Excessive noise and vibration

Gearbox Repair

  1. Drain oil and dismantle gearbox
  2. Inspect bearing and seal surfaces for wear or damage
  3. Remove the affected bearing/ sealswhich are to be replaced after the shaft or housing work
  4. All bearings to be replaced if bearing surfaces are worn
  5. Carry out the required engineering work to bring the bearing or seal surface back within tolerance
  6. Fit the new bearings
  7. Clean and reassemble gearbox with new oil seals
  8. Check the backlash between gears

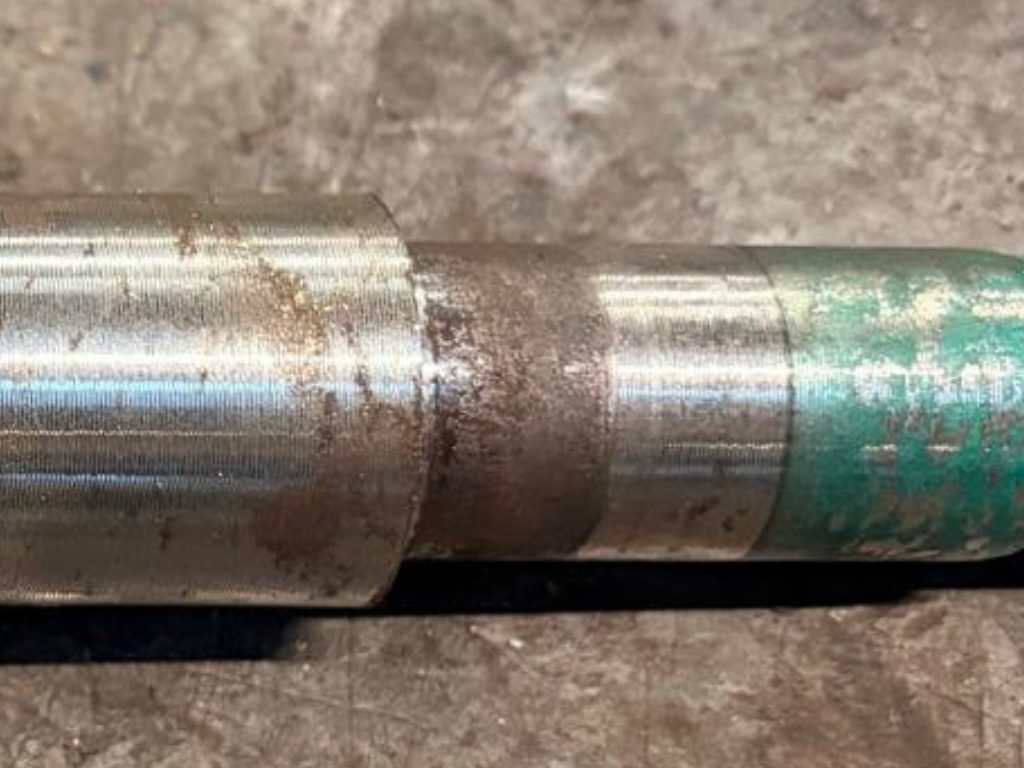

Worn Bearing Surface
Oil Seal Picture
Worn Bearing Surface on gearbox

Possible Problems

  • Excessive noise and vibration
  • Knocking sound originating from the hollow bore
  • Metal dust from wear

Gearbox Repair

  1. Drain oil and dismantle gearbox
  2. Inspect the gears for wear or damage
  3. Remove and replace the affected bearings
  4. Carry out engineering work to restore the hollow bore to tolerance, or replace it depending on repair status and availability
  5. Clean and reassemble gearbox with new oil seals
  6. Check the backlash between gears
Gearbox Worn Output Shaft
Gearbox Worn Input Shaft
Gearbox Picture

Possible Problems

Excessive noise and vibration
Locked-up gearbox
Tight spots on gears
Gears slipping

Example Procedure

  1. Drain oil and dismantle gearbox
  2. Inspect gears for wear or damage
  3. Remove and replace affected bearings after shaft work
  4. Replace the worn or damaged gears, depending on availability
  5. Clean and reassemble gearbox with new oil seals
  6. Check the backlash between gears
Worn Pinion
Worn Gear
Worn Gear Top Gearbox View

24/7

Emergency Response

22

Full-time engineers

5 Tonne

Lifting Capacity

ISO 9001

Quality Certified

Why BAWCo?

Here’s what BAWCo brings to every gearbox repair.

Custom Built Workshop

SMILAW Works is our custom-built workshop in West Yorkshire, designed for a wide range of repairs. Indoor cranes handle the heavy lifting, and we’re within a mile of the M606 and M62 for easy access.

New Gearboxes Available

If an industrial gearbox repair isn’t the most economical option, we can quote you for a new gearbox. That way you can compare costs and choose.

Servicing to Suit Your Duty

A gearbox working at full capacity needs servicing more often than one working at half. We recommend intervals based on your application and operating capacity.

Frequently Asked Questions

Still have questions? Here’s what customers ask us most.

We repair a wide range of industrial gearboxes, including helical, worm, bevel and hollow bore units. Tell us what you have and our engineers will assess it and recommend the right repair.

We repair gearboxes from a wide range of manufacturers, including Bonfiglioli, SEW Eurodrive, Nord, Yilmaz, Leroy Somer, EMOD Motoren and Motovario. If yours isn’t listed, contact us and our engineers will take a look.

We assess every gearbox before any work starts. If it can’t be repaired, or a repair isn’t the most economical option, we’ll tell you and quote for a new gearbox instead.

Request a Repair

Get in touch, and our engineers will inspect your gearbox, diagnose the fault and recommend the right repair.

Contact Us

Gearbox Replacements

All industrial gearboxes can be offered as replacements, depending on availability.
