Additional Services
Specialist Services Under One Roof
Based in Bradford, BAWCo is a family business established in 1919, with engineering knowledge passed down through generations. That experience goes into every specialist service we offer from our custom SMILAW workshop.
Enquire now
Imbalance wears out your machine from the inside. Our dynamic balancing service brings your rotor back to the grade you need.
How to Spot Machine Imbalance
- High vibrations
- Excessive noise
- Loss of performance
- Shortened lifespan, with accelerated wear on bearings, shafts and other components
BAWCo Capabilities
- Medium to large rotors (7.5kW rotors and above)
- Medium to large fans
- Impellers
- DC Armatures

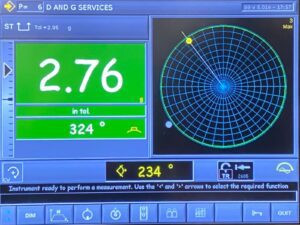

We balance every rotor to the grade you need. G 2.5 is the most common for electric motors. All balancing grades meet ISO 21940 standards.

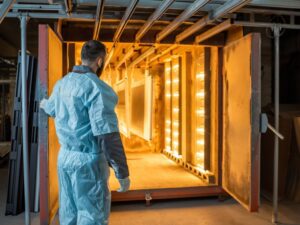

Cleaned, sealed and stoved in-house
What we do
- Jet wash and stove windings
- Impregnate with varnish, stove, and scrape
Oven details
- Oven dimensions: 1.8 m (W) × 1.7 m (D) × 1.7 m (H)
- Maximum operating temperature: 180 °C

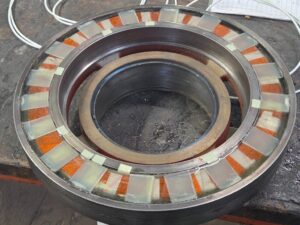

Strip and rewind AC and DC brake coils
Our process
- Detailing and stripping the brake coil
- Clean up and insulate housing/ laminations
- Make former and wind coil
- Varnish and oven-stove or epoxy windings
- Final electrical test on windings
Request a Service
Not sure which service you need? Talk to our engineers, and we’ll point you in the right direction.
